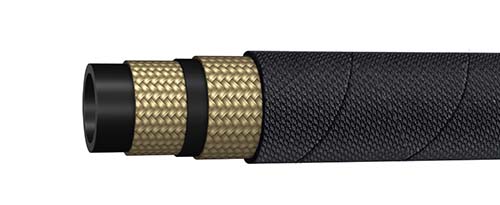

PH256 – R2AT / 2SN HIGH TEMPERATURE MSHA

Applicable Standard : SAE J517-100R2AT / EN 853-2SN / ISO 1436

Construction

Inner tube
Black Colour, Synthetic rubber resistant to oil and water
Reinforcement
Double steel wire braids
Cover
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone. Available in wrap and smooth finish*
Application
High Pressure Hydraulic Lines 50 to 415 bar. For use with petroleum,synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural,Earthmoving & Material handling equipment and machineries/systems
Temperature Range
-40°C to 135°C
Intermittent
120°C
Impulse Cycles
200,000; Tested upto 400,000 cycles,upto 1″I.D

*Smooth cover available only upto size 1″
