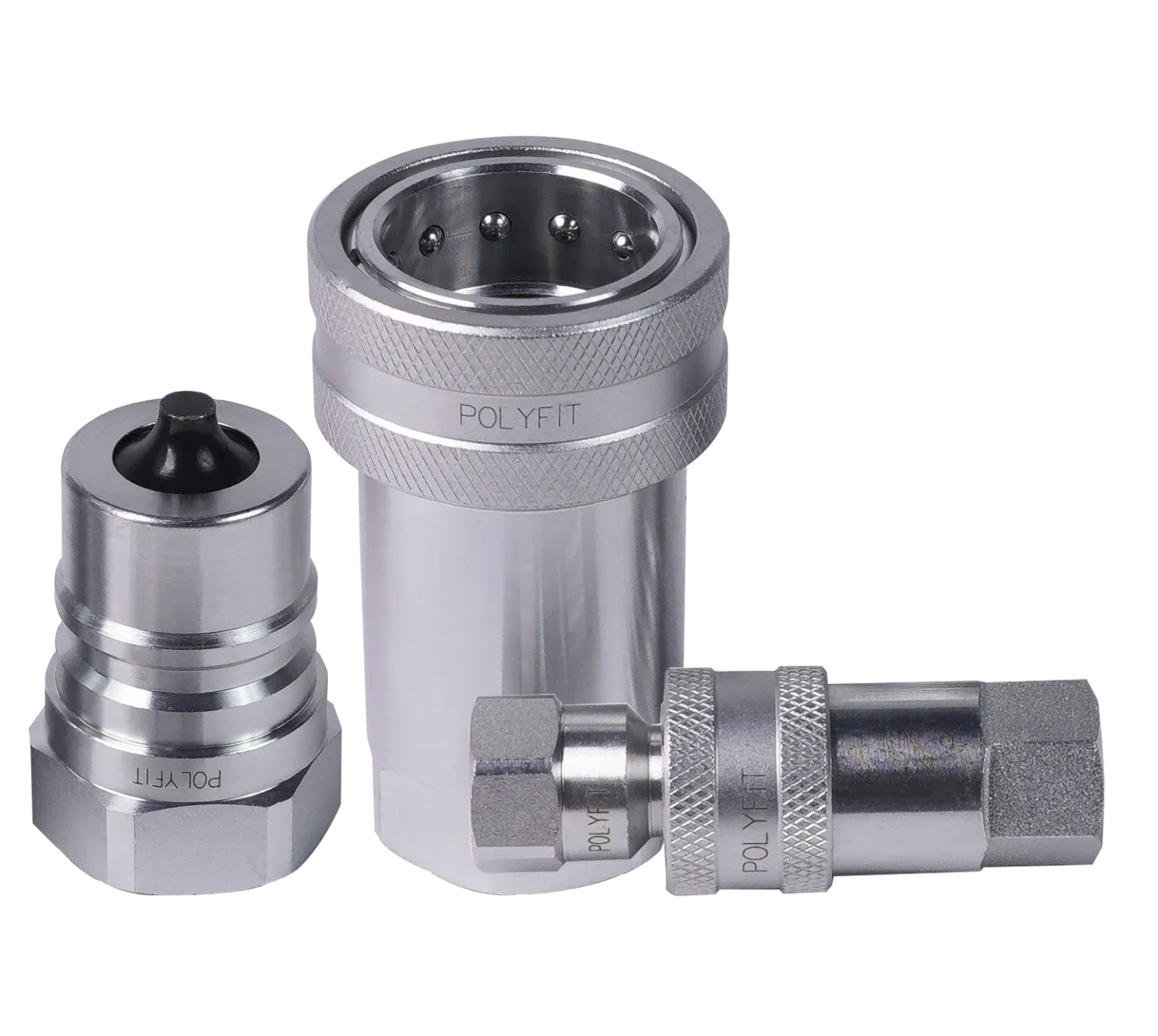

BALL TYPE
BALL TYPE
Full specifications for BALL TYPE are available on request — contact us for the datasheet, or add it to your quote list.
SPECIFICATIONS
Body Size(in)(BSP) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
|---|---|---|---|---|---|
Rated Pressure(bar) | 345 | 300 | 300 | 250 | 210 |
Rated Flow(LPM) | 11 | 22 | 45 | 105 | 189 |
Temperature Range(Std seals) | -20 to +120 C | ||||
Standard Seal Material is | NBR |
FEATURES
- Poppet valve available to prevent uncoupled leakage.
- Poppet valves open automatically when coupled, within rated working pressure to keep the flow expeditely.
- Dependable ball-locking mechanism holds the mating halves together.
- This series conforms to the standard ISO 7241-A.
- Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
