PF-43-FBSP90-SS

PF-43-FBSP90-SS-ONE PIECE BSP FEMALE 60º CONE (90º ELBOW) FITTING

Full specifications for PF-43-FBSP90-SS are available on request — contact us for the datasheet, or add it to your quote list.

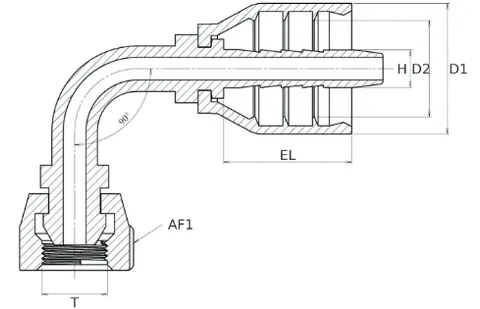

POLYFIT PART.NO	H	T	AF1	EL	D1	D2	PARKER PART.NO	DICSA PART.NO	OMEGA PART.NO
PF43-04-04-FBSP90-SS	1/4"	1/4" -19h BSP	19	22.5	23	16.9	1B253-04-04	881070404	H-43-FBSP-90-04-04
PF43-06-06-FBSP90-SS	3/8"	3/8" -19h BSP	22	24.5	28	20.7	1B253-06-06	881070606	H-43-FBSP-90-06-06
PF43-08-08-FBSP90-SS	1/2"	1/2" -14h BSP	27	26.7	32	24.8	1B253-08-08	881070808	H-43-FBSP-90-08-08
PF43-12-12-FBSP90-SS	3/4"	3/4" -14h BSP	32	35.5	40	32	1B253-12-12	881071212	H-43-FBSP-90-12-12
PF43-16-16-FBSP90-SS	1"	1" -11h BSP	41	42	47	39	1B253-16-16	881071616	H-43-FBSP-90-16-16

Note:

Additional sizes available on request.
This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
General tolerance is applicable.
