PF-43-FJ90-SS

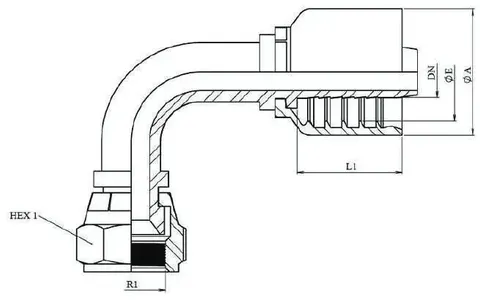

PF-43-FJ90-SS-ONE PIECE JIC 37º FEMALE SWIVEL (90º ELBOW)

Full specifications for PF-43-FJ90-SS are available on request — contact us for the datasheet, or add it to your quote list.

POLYFIT PART.NO	H	T	AF1	EL	D1	D2	PARKER PART.NO	DICSA PART.NO	OMEGA PART.NO
PF43-04-04-FJ90-SS	1/4"	7/16" -20h UNF	14	22.5	23	16.9	13943-04-04	881380704	H-43-FJX-90-04-04
PF43-04-06-FJ90-SS	1/4"	9/16" -18h UNF	19	22.5	23	16.9	13943-04-06	-	H-43-FJX-90-04-06
PF43-06-06-FJ90-SS	3/8"	9/16" -18h UNF	19	24.5	28	20.7	13943-06-06	881380906	H-43-FJX-90-06-06
PF43-06-08-FJ90-SS	3/8"	3/4" -16h UNF	24	24.5	28	20.7	13943-06-08	-	H-43-FJX-90-06-08
PF43-08-08-FJ90-SS	1/2"	3/4" -16h UNF	24	26.7	32	24.8	13943-08-08	881381208	H-43-FJX-90-08-08
PF43-08-10-FJ90-SS	1/2"	7/8" -14h UNF	27	26.7	32	24.8	13943-08-10	881381408	H-43-FJX-90-08-10
PF43-10-10-FJ90-SS	5/8"	7/8" -14h UNF	32	30.2	35	27.8	13943-10-10	881381410	H-43-FJX-90-10-10
PF43-12-12-FJ90-SS	3/4"	1.1/16" -12h UNF	32	35.5	40	32	13943-12-12	881381712	H-43-FJX-90-12-12
PF43-12-16-FJ90-SS	3/4"	1.5/16" -12h UNF	41	35.5	40	32	13943-12-16	-	H-43-FJX-90-12-16
PF43-16-16-FJ90-SS	1"	1.5/16" -12h UNF	41	42	47	39	13943-16-16	881382116	H-43-FJX-90-16-16

Note:

Additional sizes available on request.
This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
General tolerance is applicable.
