PF-43-MJ-SS

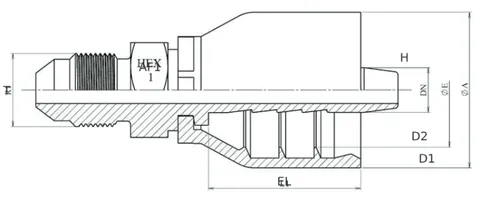

PF-43-MJ-SS-ONE PIECE JIC 37º MALE STRAIGHT FITTING

Full specifications for PF-43-MJ-SS are available on request — contact us for the datasheet, or add it to your quote list.

POLYFIT PART.NO	H	T	AF1	EL	D1	D2	PARKER PART.NO	DICSA PART.NO	OMEGA PART.NO
PF43-04-04-MJ-SS	1/4"	7/16" -20h UNF M	19	22.5	23	16.9	10343-04-04	881400704	H-43-MJ-04-04
PF43-06-06-MJ-SS	3/8"	9/16" -19h UNF M	22	24.5	28	20.7	10343-06-06	881400906	H-43-MJ-06-06
PF43-08-08-MJ-SS	1/2"	3/4" -16h UNF M	27	26.7	32	24.8	10343-08-08	881401208	H-43-MJ-08-08
PF43-10-10-MJ-SS	5/8"	7/8"-14h UNF M	32	30.2	35	27.8	10343-10-10	-	H-43-MJ-10-10
PF43-12-12-MJ-SS	3/4"	1.1/16" -12h UNF M	32	35.5	40	32	10343-12-12	881401712	H-43-MJ-12-12
PF43-16-16-MJ-SS	1"	1.5/16" -12h UNF M	41	42	47	39	10343-16-16	881402116	H-43-MJ-16-16

Note:

Additional sizes available on request.
This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
General tolerance is applicable.
