PF-43-FP45-SS

PF-43-FP45-SS-ONE PIECE NPSM FEMALE SWIVEL 60º CONE (45º ELBOW) FITTING

Full specifications for PF-43-FP45-SS are available on request — contact us for the datasheet, or add it to your quote list.

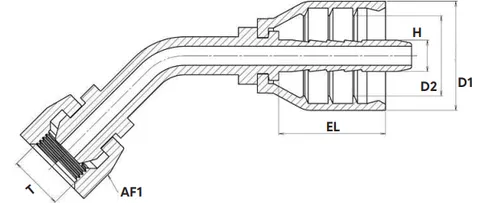

POLYFIT PART.NO	H	T	AF1	EL	D1	D2	PARKER PART.NO	DICSA PART.NO	OMEGA PART.NO
PF43-04-04-FP45-SS	1/4"	1/4" -18h NPSM	19	22.5	23	16.9	-	882630404	H-43-FPX-45-04-04
PF43-06-06-FP45-SS	3/8"	3/8" -18h NPSM	22	24.5	28	20.7	-	882630606	H-43-FPX-45-06-06
PF43-08-08-FP45-SS	1/2"	1/2" -14h NPSM	27	26.7	32	24.8	-	882630808	H-43-FPX-45-08-08
PF43-12-12-FP45-SS	3/4"	3/4" -14h NPSM	32	35.5	40	32	-	882631212	H-43-FPX-45-12-12
PF43-16-16-FP45-SS	1"	1" -11.5h NPSM	41	42	47	39	-	882631616	H-43-FPX-45-16-16

Note:

Additional sizes available on request.
This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
General tolerance is applicable.
