PF-43-MP-SS

PF-43-MP-SS-ONE PIECE NPT MALE STRAIGHT FITTING

Full specifications for PF-43-MP-SS are available on request — contact us for the datasheet, or add it to your quote list.

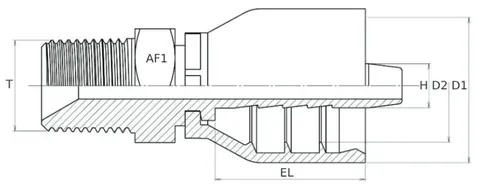

POLYFIT PART.NO	H	T	AF1	EL	D1	D2	PARKER PART.NO	DICSA PART.NO	OMEGA PART.NO
PF43-04-04-MP-SS	1/4"	1/4" -18h NPT M	17	22.5	23	16.9	10143-04-04	881610404	H-43-MP-04-04
PF43-04-06-MP-SS	1/4"	3/8" -18h NPT M	19	22.5	23	16.9	10143-04-06	881610604	H-43-MP-04-06
PF43-06-06-MP-SS	3/8"	3/8" -18h NPT M	19	24.5	28	20.7	10143-06-06	881610606	H-43-MP-06-06
PF43-06-08-MP-SS	3/8"	1/2" -14h NPT M	22	24.5	28	20.7	10143-06-08	881610806	H-43-MP-06-08
PF43-08-08-MP-SS	1/2"	1/2" -14h NPT M	27	26.7	32	24.8	10143-08-08	881610808	H-43-MP-08-08
PF43-10-08-MP-SS	5/8"	1/2" -14h NPT M	27	30.2	35	27.8	10143-10-08	881610810	H-43-MP-10-08
PF43-12-12-MP-SS	3/4"	3/4" -14h NPT M	32	35.5	40	32	10143-12-12	881611212	H-43-MP-12-12
PF43-12-16-MP-SS	3/4"	1" -11.5h NPT M	36	35.5	40	32	10143-12-16	881611612	H-43-MP-12-16
PF43-16-16-MP-SS	1"	1" -11.5h NPT M	36	42	47	39	10143-16-16	881611616	H-43-MP-16-16
PF43-16-12-MP-SS	1"	3/4" -14h NPT M	32	42	47	39	10143-16-12	881611216	H-43-MP-16-12

Note:

Additional sizes available on request.
This information is for guidance only, we reserve the right to alter or amend specifications as deemed necessary.
General tolerance is applicable.
