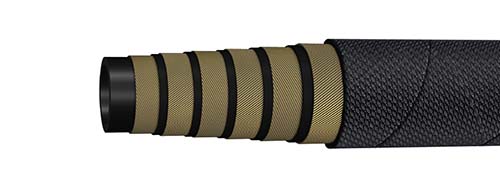

PH178-R13

Applicable Standard : SAE J 517 – 100 R13 / EN 856 – R13 / ISO 3862

Construction

Inner tube
Black colour, Synthetic rubber resistant to oil and water
Reinforcement
Four high tensile steel wire spiral (DN19-25), Six high tensile steel wire spiral (DN31-51)
Cover
Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone
Application
350 bar super high pressure Hydraulic Lines and hydrostatic transmission lines. Also, suitable for impulse surge lines with more life cycles for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving equipments a
Cover Options
PH178 : MSHA
PH128 : HARDX MSHA
Item
Code
Dash
Size
DNID RI ODODWPBPBR/rW
inchmminchmminchmmpsibarpsibarinchmmkg/m
PH178-12-12193/419.21.1429.01.2632.150753502030014009.452401.814
PH178-16-1625125.71.4035.61.5238.7507535020300140011.813002.277
PH178-20-20311.1/432.21.8547.01.9649.8507535020300140016.544204.269
PH178-24-24381.1/238.52.1755.12.2657.3507535020300140019.695005.747
PH178-32-3251251.42.6767.72.8071.1507535020300140025.206407.852
Temperature Range
: Continuous: -40°C to +121°C
Impulse Cycles
500,000 cycles
