Conformal Coating

Why Is Conformal Coating Necessary?

Printed Circuit Boards (PCBs) may be exposed to moisture, dust, chemicals, temperature variations, and other environmental conditions during operation. Over time, these factors can affect electronic components, electrical connections, and overall circuit performance.

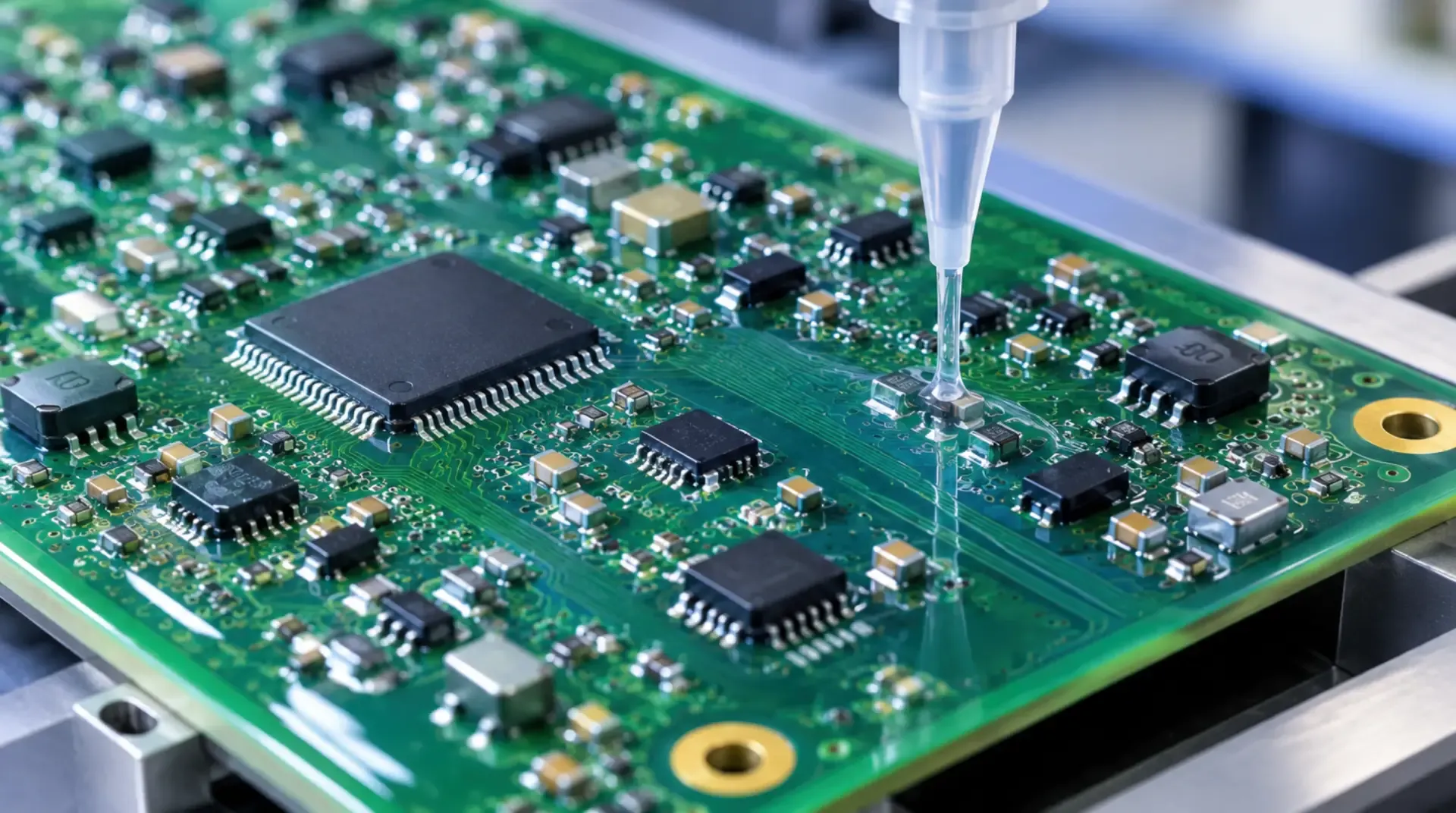

Conformal coating adds a thin protective layer over the assembled PCB, helping reduce exposure to environmental contaminants and supporting reliable operation. Selecting a suitable coating depends on the circuit board design, component requirements, and the conditions in which the product will be used.

Importance of Conformal Coating

• Protection Against Moisture: Helps minimize the effects of humidity and moisture on electronic assemblies.
• Resistance to Environmental Contaminants: Provides a barrier against dust, dirt, and certain chemical contaminants, depending on the coating material.
• Temperature Variation Support: Helps protect assemblies operating under changing temperatures when an appropriate coating is selected.
• Electrical Reliability: Helps reduce the risk of electrical leakage caused by surface contamination.
• Corrosion Prevention: Helps protect vulnerable PCB surfaces and connections from environmental exposure.
• Improved Durability: Supports the long-term reliability of electronic assemblies in suitable operating conditions.

Conformal Coating Solutions for PCB Assemblies

Different electronic applications require different levels of protection. The appropriate conformal coating material and application method should be selected based on the PCB layout, component sensitivity, operating environment, and production requirements.

Careful consideration of factors such as moisture exposure, chemical contact, temperature conditions, and coating compatibility helps determine a suitable solution for each assembly.

Conformal coating is an important consideration for electronic products used in automotive electronics, industrial controls, and other applications where environmental protection is required.
